RAISED ACCESS FLOORS: STRUCTURES
TF3/SA

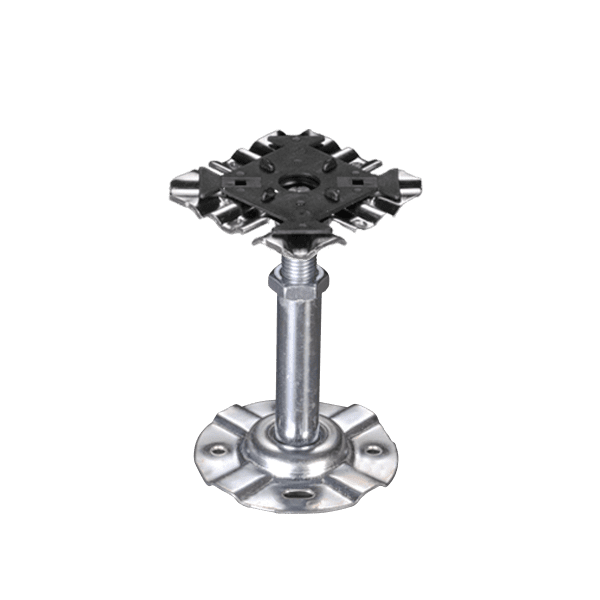

Galvanized steel structure
AVAILABLE IN 2 MODELS
Galvanized steel structure consisting of columns only, ideal for heights up to 400 mm. It ensures stability and strength in low-height applications while still providing precise and easy adjustment.
TECHNICAL AREA
MOD. 1
| RE. | COMPONENTS | DIMENSIONS (MM) | QTY/M² | HEIGHTS |
|---|---|---|---|---|
| 1 | Plate Head | 90×90×2.5 | 3.2 | Nominal heights from 40 mm to 105 mm. |
| 2 | Threaded Stem | 16 (16 MA) | 3.2 | |
| 3 | Notched Nut | 24×3 | 3.2 | |
| 4 | Threaded Tube | 22×3 | 3.2 | |
| 5 | Circular Base | 95×1.5 | 3.2 | |
| 6 | Acoustic Gasket | 90×90×2 | 3.2 |
MOD. 2
| RE. | COMPONENTS | DIMENSIONS (MM) | QTY/M² | HEIGHTS |
|---|---|---|---|---|
| 1 | Plate Head | 90×90×2.5 | 3.2 | Nominal heights from 105 mm to 990 mm. |
| 2 | Threaded Stem | 16 (16 MA) | 3.2 | |
| 3 | Notched Nut | 24×3 | 3.2 | |
| 4 | Tube | 20×2 | 3.2 | |
| 5 | Circular Base | 95×1.5 | 3.2 | |
| 6 | Acoustic Gasket | 90×90×2 | 3.2 |
